Just wanted to report that my last email from Argon40 team in mid December said they were pushing back the release of the UPS to Q1 (January 1 - March 31) of 2025. However, it’s now well past the half-way mark of Q1 and the UPS still hasn’t gone live on the website.
I would love to know what the hold-up is and why it’s taking them so long. Obviously this product is not without issues given their reluctance to deem it ready for prime-time sales.
We are very close to releasing the UPS. Since the inception of the project, our team has evolved the design from a simple concept to a feature-rich product, staying true to the thoughtful and practical approach that characterizes Argon Products. We have now locked in the design and are preparing to begin the first production batch. All necessary certifications for the battery and the product have been completed. We anticipate releasing the product by early Q2
Glad to hear you’re getting closer to completion. If early Q2 is referencing April 1 to mid May, we should see this in less than a month.
One question I’ve asked repeatedly in emails about over the past year(but have not been answered): Is this going to be able to directly power the pi5 RTC?
I would think it would need a dedicated connector and there doesn’t appear to be a way to access that without modifying the rPi case.
I think you guys missed the boat on the form factor of the UPS. I would have liked to see a more integrated solution with your existing product. Maybe the same form factor as the ArgonOne V3 M.2 case, with a connector on the top of the UPS and a modified plastic shell for the bottom of the M.2 case so when you stack the two together they have a mating connection. Instead this looks like a USB battery bank that you can connect via USB cable to the back of the pi case.
I would guess you were designing this to match the V5 case instead of the V3 M.2 case?
I’ve had my hopes up for the better part of a year that at some point Argon would come out with an update or simply release the UPS, but it’s been crickets and there are no products available on their website.

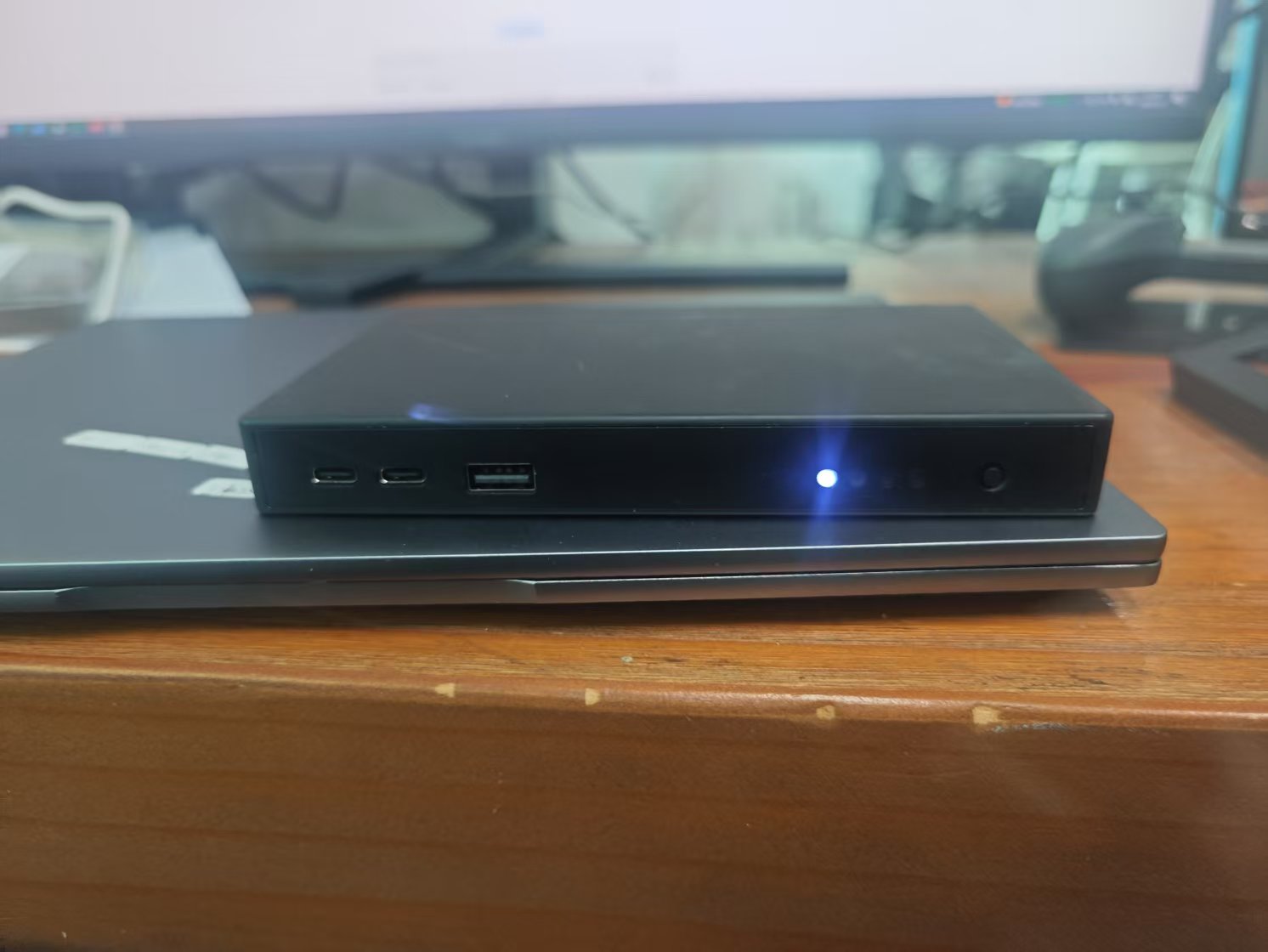

I came across your earlier updates on the Argon40 UPS development. Now that the UPS is available, I’ve been using the 10,000mAh model with a Raspberry Pi 5 in an Argon ONE V5 Dual M.2 NVMe setup.
I’ve integrated the UPS into my own monitoring and controlled-shutdown solution, including a Grafana dashboard, using its USB CDC interface. Everything is working well, but I’m interested in understanding what additional telemetry the firmware supports.
I’m currently running firmware 113, and have identified the following USB commands:
0 — Battery charge percentage and AC/battery status
2 — Charging current (units and measurement point not yet confirmed)
4 — Firmware version
5 — UPS RTC
7 — Power-on alarm readback (response behaviour not fully understood)
I have a few questions:
Does the UPS have an internal battery or PCB temperature sensor, and if so, can its reading be accessed through USB?
Are additional measurements available, such as battery voltage, discharge current, battery health or fault status?
Is there a more complete USB command/protocol reference available, including the units for command 2 and the expected response from command 7?
I’ve already asked Argon40 customer support, but these questions are outside their remit, and they don’t have direct contact with the software development team.
Would you be able to point me towards the appropriate developer or technical documentation?
I’m particularly interested in making use of existing read-only telemetry rather than modifying the UPS firmware.
Following up on your earlier posts about the Argon40 UPS development.
I’m now using the 10,000mAh UPS with my Raspberry Pi 5 and have integrated its USB telemetry into a Grafana monitoring dashboard.
I’ve raised a GitHub issue requesting clarification of the FW113 USB protocol, including additional battery telemetry, temperature sensor availability and RTC/alarm behaviour:
